3D Welding Table With Quick Clamp System D16 Hole Specification

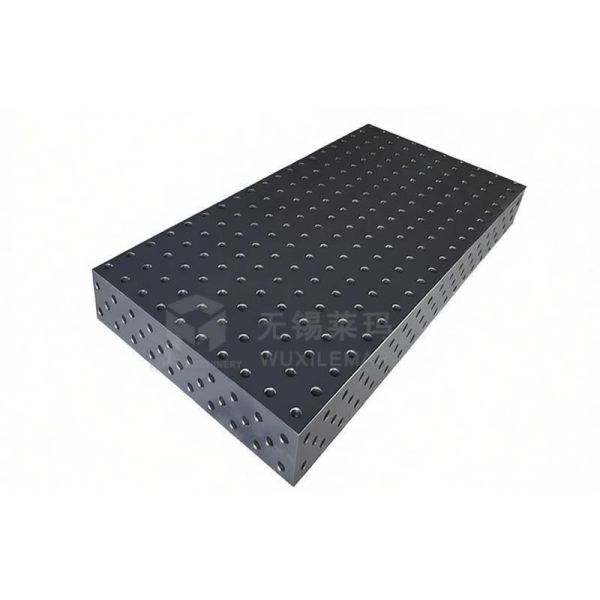

The 3D Welding Table with Quick Clamp System (D16 Hole Specification) is a high-precision, modular, and flexible welding fixture. Its core features include φ16mm positioning holes, a 50×50mm grid hole spacing, and a quick clamping mechanism. It is used for rapid positioning and rigid fixing in metal welding, assembly, and inspection, replacing traditional dedicated fixtures and enabling multi-variety, small-batch, and high-precision welding production.
| Locating hole diameter |
φ16mm |
| Hole spacing (grid) |
50×50mm |
| Surface treatment |
Nitriding treatment |
| Flatness |
0.1mm/1000mm |
| Tabletop dimensions |
1200×1200 mm, 2400×1200 mm, etc. |
| Load capacity |
Tabletop 2T, frame 5T |
Core Advantages and Application Scenarios
Core Advantages
- High Precision: Hole system + precision clamping ensures consistent welding dimensions and reduces rework;
- High Flexibility: One set of fixtures adapts to multiple types of workpieces, reducing fixture costs and inventory;
- High Efficiency: Fast clamping shortens production cycles and increases productivity;
- Durability: Nitrided surface + high-strength material ensures long service life and low maintenance costs.
Typical Applications
- Welding of automotive parts (frames, chassis, sheet metal parts);
- Precision welding of construction machinery, steel structures, molds, and medical devices;
- Small-batch, multi-variety customized metal processing and assembly;
- Fixtures for robotic welding workstations and automated production lines.
Customization capabilities
- Tabletop Customization: Non-standard sizes (e.g., 800×600mm, 3000×1500mm), thickened tabletops (16mm/20mm, for increased load capacity), special openings (locally reinforced D16 holes, pre-drilled holes for tooling installation);
- Material Customization: Standard cast steel/cast iron, customizable stainless steel tabletops (304/316, suitable for dust-free/corrosion-resistant welding scenarios such as food machinery and medical equipment), lightweight aluminum alloy tabletops (suitable for light-load workpieces on automated production lines);
- Surface Treatment Customization: Mainstream nitriding treatment, customizable blackening treatment, powder coating (reduces cost, suitable for low-precision, general welding scenarios), chrome plating (improves rust resistance, suitable for humid workshops/temporary outdoor welding);
- Configuration Customization: Customizable accessory packages according to customer needs (e.g., only quick-release pins + V-blocks, or a complete set of clamping + positioning accessories), or customizable integrated frames (with storage shelves, casters, suitable for mobile use in workshops).
We promise
Specializing in flexible welding fixtures, WUXI LEMAR meticulously crafts the 3D Welding Table with Quick Clamp System (D16 Hole Specification). With the precision of the D16 hole system for accurate positioning and a quick clamping system for enhanced efficiency, its modular design adapts to all manufacturing needs. We offer a 1-year warranty on the main table and a 6-month warranty on quick-clamping accessories, ensuring robust quality and comprehensive service throughout the product lifecycle. We are committed to partnering with global clients, providing high-quality, internationally standardized equipment, earning trust through quality and achieving mutual success through service, as we embark together on a new journey of intelligent manufacturing.
