Octagonal Precision Welding Table Engraved Scale For Precise Measurement

Brand Name : LEMAR

Certification : CE

Place of Origin : WUXI

MOQ : 1

Price : 500-1000 USD

Payment Terms : D/A,T/T,Western Union,D/P,L/C

Supply Ability : 500 units/month

Delivery Time : 15-25 work days

Packaging Details : 3000*2000*300mm

Model Number : D28

Engraving Process : Deep engraved, permanent

Surface Flatness : 0.05–0.1 mm/m

Load Capacity : 1000–3000 kg

Fixture System : Standard 3D welding table hole system

Surface Treatment : Quenched, anti‑rust, anti‑splash

Diagonal Size : ≈ 1131 mm / ≈ 1414 mm / ≈ 1697 mm

Scale Type : mm + inch dual scale

Adjustment Range : ±20 mm

Working Temperature : -20℃ ～ 200℃

Contact Now

Octagonal Welding Table with Engraved Scale for Precise Measurement
The Octagonal Welding Table with Engraved Scale for Precise Measurement is a heavy-duty precision welding fixture platform designed for integrated operations of welding, assembly, positioning, measurement, and fixture installation. This high-precision worktable serves the welding, sheet metal, steel structure, and tooling fixture industries.
Technical Specifications
Feature Specification
Table Shape Octagonal (8-sided)
Table Material High-strength cast iron / heavy steel plate
Table Size 800 mm / 1000 mm / 1200 mm (across flats)
Diagonal Size Φ1130 mm / Φ1414 mm / Φ1697 mm
Table Thickness 20-30 mm
Working Height 700-850 mm
Scale Type mm + inch dual scale
Surface Flatness 0.05-0.1 mm/m

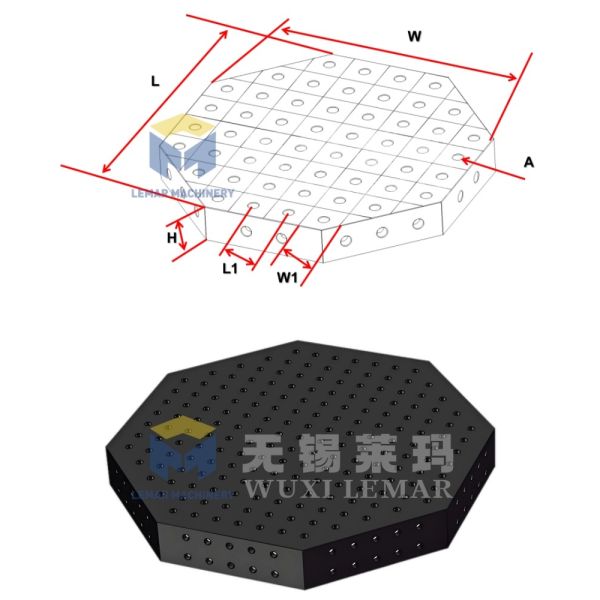

Octagonal Precision Welding Table Engraved Scale For Precise Measurement

Octagonal Countertop Design
The work surface features an innovative octagonal shape rather than traditional square or round designs.
  • Simultaneous operation from 8 directions enables multi-station and multi-person collaborative work
  • Enhanced flexibility for workpiece rotation, angle welding, and pipe welding applications
  • Superior space utilization, ideal for precision welding of small and medium-sized parts
Permanently Engraved Scale System
Precision markings are directly engraved onto the work surface, eliminating temporary stickers or spray paint solutions. The engraved scale includes:
  • Millimeter markings (mm)
  • Inch markings (inch)
  • Angle lines for precise angular positioning
  • Center lines and baselines for accurate alignment
Key advantages of the engraved scale system:
  • High temperature resistance, wear resistance, and permanent adhesion
  • Direct measurement, marking, and positioning during welding operations
  • Significant improvement in welding accuracy and production efficiency

Octagonal Precision Welding Table Engraved Scale For Precise Measurement

Functions and Advantages
This multi-purpose platform serves as a comprehensive welding, positioning, measurement, assembly, scribing, and tooling fixture system.
Key Performance Benefits
  • High Precision: Engraved scale and superior surface flatness ensure accurate workpiece dimensions
  • High Efficiency: Reduces time spent on repeated measurement, clamping, and alignment operations
  • High Durability: Heavy-duty construction and deep engraving ensure long-term performance without deformation or wear
  • Flexible Operation: Octagonal design enables simultaneous multi-directional and multi-station workflows
  • High Versatility: Compatible with various standard welding fixtures and suitable for multiple industrial applications
Advantages Over Traditional Square Workbenches
  • Octagonal design provides 8 operable sides compared to only 4 sides on square benches
  • Enhanced flexibility for angle welding and pipe welding applications
  • Multiple operators can work simultaneously without interference
  • Integrated engraved scale eliminates need for separate measuring tapes or squares
  • Superior precision, efficiency, and professional workflow capabilities
