Complete Set Welding Fixture Table HRC 40- 45 Welding Fixture Table

Brand Name : LEMAR

Model Number : D28

Certification : CE

Place of Origin : WUXI

MOQ : 1

Price : 500-1000 USD

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 500 units/month

Delivery Time : 15-25 work days

Packaging Details : 3000*2000*200mm

Hole Type : D16 / D28 (optional)

Positioning Accuracy : ±0.02–0.05 mm

Table Hardness : HRC 40+

Frame Material : Heavy steel square tube

Surface Treatment : Anti-rust painting / powder coating

Load Capacity : 1000–3000 kg

Adjustable Foot Pad : ±20 mm

Shipping : By sea / land

Condition : New

Contact Now

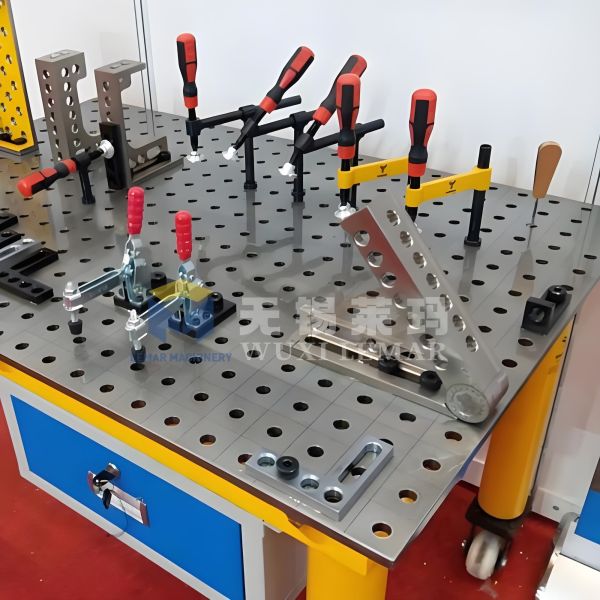

2D Welding Table with Complete Set of Accessories
The 2D Welding Table with Complete Set of Accessories is a precision tooling platform for metal welding and machining. Designed for rapid positioning and clamping in the XY plane, this system enables efficient, precise, and repeatable welding operations with standardized fixture accessories.
Technical Specifications
Countertop hardness HRC 40-45
Machining accuracy Flatness ≤ 0.05 mm/m²
Pore system form Square hole grid system
Hole spacing 50×50 mm / 100×100 mm
Hole diameter D16 / D28
Frame Heavy-duty square tube steel
Adjustable feet ±20 mm
Load capacity 1.5-5 ton/m²
Complete Set Welding Fixture Table HRC 40- 45 Welding Fixture Table
Complete Set Welding Fixture Table HRC 40- 45 Welding Fixture Table
Complete Set Welding Fixture Table HRC 40- 45 Welding Fixture Table
Core Functions and Advantages
  • Quick Changeover: Modular building block design enables tooling switchover within minutes, reducing time and cost for custom welding fixtures
  • High Repeatability: Unified hole system ensures consistent workpiece positioning during batch welding, minimizing dimensional tolerances
  • Flexible Operation: Adaptable to various workpieces including sheet metal, square tubing, round tubing, and angle steel
  • Lowered Barrier to Entry: Beginners can achieve precise positioning using standard accessories, reducing reliance on experienced welders
Standard Accessories Configuration
Quick clamp / elbow clamp Quickly clamp workpieces to prevent welding displacement
Locating pin / diamond pin Reference positioning ensures repeatable clamping accuracy (±0.01mm)
Angle blocks / right angle ruler Precise control of welding angles such as 90° and 45°
V-block Clamping round tubes and shafts
Support block / Elevating block Leveling workpieces of different thicknesses
Wrench, connecting bolts, storage box Tools and storage solutions
Complete Set Welding Fixture Table HRC 40- 45 Welding Fixture Table
Structural Details
  • Reinforced Construction: Heavy-duty square tubing frame with multiple crossbeams prevents wobbling and deformation under load
  • Adjustable Leveling: Quick-leveling feet ensure table stability even on uneven surfaces
  • Safety Features: Chamfered tabletop holes and edges prevent hand injuries and slag buildup
  • Vibration Control: Low center of gravity and high rigidity minimize vibration during welding operations
Durability and Lifespan
Built with high-strength cast iron/steel plate tabletop resistant to cracking and bending. Surface treatment provides rust and welding slag protection, extending lifespan significantly compared to ordinary workbenches. High-strength steel clamps maintain integrity after repeated use. With proper maintenance, expect 5-10 years or more of reliable service.

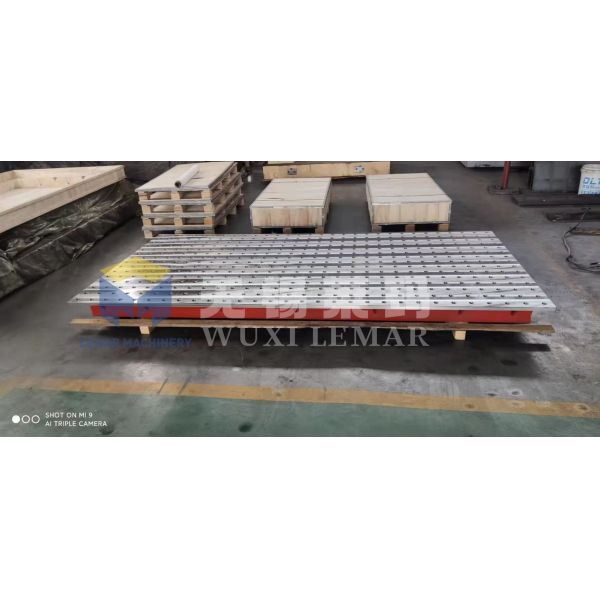

Packaging and Transportation
  • Export standard plywood crates or steel-strapped crates
  • Tabletops protected with anti-scratch film
  • Accessories individually packaged and categorized
  • Available as complete package or disassembled for cost savings
  • Suitable for sea, land, and cross-border transportation
