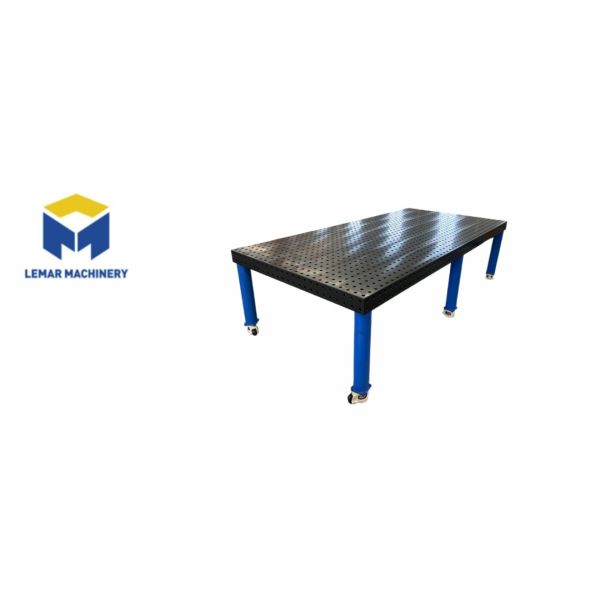

Low Price, High-Quality Modular 3D Welding Table
The Low-Price, High-Quality Modular 3D Welding Table is a standardized, rapidly reconfigurable welding positioning and clamping system. Emphasizing low cost, high precision, and exceptional flexibility, it is widely utilized in metal welding, mechanical assembly, and quality inspection.
Product Models Comparison
2D Welding Table
- Structure: Flat plate; lacks a 3D positioning hole system
- Hole System: Typically features only T-slots; lacks a grid-hole pattern
- Positioning Method: T-slots + clamping plates; limited to 2D planar clamping
- Flatness: 0.1-0.3 mm/m²
- Load Capacity: 1-5 t
- Accuracy: Low to Medium
3D Welding Table
- Positioning Method: X/Y/Z 3D spatial positioning with quick-pin locking
- Flatness: 0.05-0.1 mm/m²
- Perpendicularity / Parallelism: ≤0.05 mm/m
- Load Capacity: Static 3-10 t, Dynamic 1-5 t
- Accessories: Full range of modular accessories including positioning pins, angle squares, quick clamps, support feet, V-blocks, etc.
- Expandability: Multiple units can be seamlessly spliced together for infinite expansion; upgradable for automation
- Changeover Time: 3-10 minutes
3D Welding Table Series
D16 Series (Precision Type)
- Hole Diameter: Φ16 mm

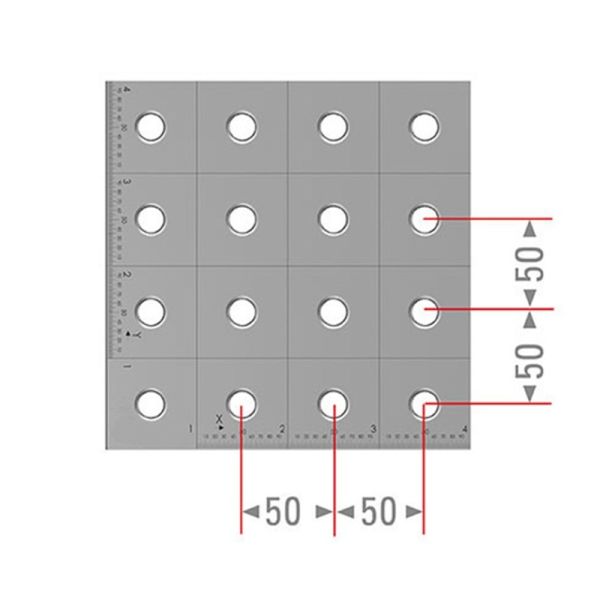

- Hole Spacing: 50 mm × 50 mm Standard Grid
- Tabletop Thickness: 14-15 mm (Steel)
- Side Height: 100 mm
- Flatness: 0.05-0.1 mm/m²
- Load Capacity: Static ≤ 2 t, Dynamic ≤ 1 t
- Material: HT250/HT300 Cast Iron, Q355 Steel Plate
- Positioning Accuracy: ±0.05 mm
D28 Series (Heavy-Duty)
- Hole Diameter: Φ28 mm
- Hole Spacing: 100 mm × 100 mm Standard Grid
- Tabletop Thickness: 23-25 mm (Steel)
- Side Height: 200 mm
- Flatness: 0.05-0.1 mm/m²
- Load Capacity: Static ≥ 5 t (up to 10 t)
- Material: HT300 Cast Iron, High-Strength Q355 Steel Plate
- Positioning Accuracy: ±0.05 mm
Standard Sizes
| NO. |
Product Type |
Size (mm) |
Height (mm) |
Number of Compatible Support Legs |
| 1 |
3D Steel / Cast iron Welding table |
1000x1000 |
200/150/100 |
4 |
| 2 |
3D Steel / Cast iron Welding table |
1000x1200 |
200/150/100 |
4 |
| 3 |
3D Steel / Cast iron Welding table |
1000x1500 |
200/150/100 |
4 |
| 4 |
3D Steel / Cast iron Welding table |
1000x2000 |
200/150/100 |
4 |
| 5 |
3D Steel / Cast iron Welding table |
1500x1500 |
200/150/100 |
4 |
| 6 |
3D Steel / Cast iron Welding table |
2400x1200 |
200/150/100 |
4 |
| 7 |
3D Steel / Cast iron Welding table |
3000x1500 |
200/150/100 |
4 |
| 8 |
3D Steel / Cast iron Welding table |
4000x2000 |
200/150/100 |
4 |
| 9 |
2D Steel / Cast iron Welding Table |
1000×1000 |
200/150/100 |
4 |
| 10 |
2D Steel / Cast iron Welding Table |
1200×1200 |
200/150/100 |
4 |
| 11 |
2D Steel / Cast iron Welding Table |
1500×1500 |
200/150/100 |
4 |
| 12 |
2D Steel / Cast iron Welding Table |
2000×1000 |
200/150/100 |
4 |
We offer customization services; if you require non-standard dimensions, please contact us.
Support Leg Options
We offer customization services. If you require a specific type of support leg, please contact us.
Core Strengths
- Low Cost + High Value: A single platform replaces multiple dedicated welding fixtures, eliminating the time and expense associated with custom tooling. Compared to high-end imported brands, high-quality domestic models offer a significantly more budget-friendly price point.
- Rapid Changeover: Switching from one workpiece configuration to another typically takes just a few minutes, and operators can achieve proficiency after only a brief period of training.
- High-Precision Dimensional Control: 3D positioning accuracy reaches the 0.05mm level, drastically reducing welding distortion and rework requirements while ensuring product consistency across large-batch production runs.
- Exceptional Scalability: Supports the modular assembly of multiple units to create extra-large work surfaces; seamlessly integrates with pneumatic/hydraulic clamping systems and robotic welding cells; suitable for both small-batch custom fabrication and large-scale assembly line operations.
- Clean & Eco-Friendly: Unlike traditional fixtures, the system prevents the accumulation of welding spatter, making cleanup effortless; components are reusable, thereby minimizing consumable waste.
Company Profile
Wuxi Lemar Machinery Equipments Co., Ltd. is an intelligent manufacturing system integrating R&D, design, and production. Wuxi Lemar Welding Equipments Co., Ltd. is a well-known domestic enterprise that has produced steel structure equipment, 3D welding tables, modular welding table kits, and other complete sets of welding equipment.
Committed to the design and manufacture of various CNC cutting equipment, steel structure production lines, complete sets of welding equipment, and coating equipment. Relying on advanced concepts, excellent technology, and exquisite craftsmanship, the company has formed a multi-variety and multi-series product structure.
Our products serve construction machinery, boilers and pressure vessels, steel structures, wind power and other industries, and are exported to USA, Canada, Mexico, Poland, Australia, Germany, Italy, Spain, Russia, Southeast Asia, the Middle East, Brazil, South Africa, Pakistan, Canada, Greece, India, Vietnam, Belarus, Colombia and many other countries.
Our company has passed ISO9001 quality system certification, CE Certificate, and ISO14001 environmental system certification. We follow the business philosophy of dedication, diligence and meticulousness, guided by market demand, driven by technological innovation, capital operation as a means, scientific management as the cornerstone.
Frequently Asked Questions
What trade terms do you support?
FOB, CIF, CFR, DDP, and other common international trade terms.
What is your warranty policy?
We provide a 12-month warranty for the entire table system.
Can this table be used for robot welding?
Yes, our tables are widely used in automatic robot welding stations due to high stability and repeat positioning accuracy.
How do you package the products?
Standard export plywood cases with anti-collision and moisture-proof protection, suitable for ocean and land transportation.
Can I combine multiple tables?
Yes, our tables support unlimited side-by-side splicing to build large workstations. All sides have standard connection holes.
